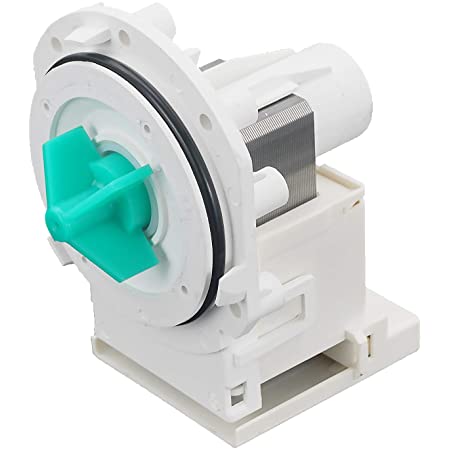

Dishwasher Drain Pump Assembly

The A00126401 is a factory-designed drain pump module for dishwashers. Its function is to actively expel water from the dishwasher tub through the drain hose during the drain cycle. When this pump fails or becomes clogged, water may remain in the bottom of the tub or trigger error codes.

Key Features:

• Purpose: Pumps wastewater out through the drain hose

• Electrical: 120 V, 60 Hz

• Power draw: ~35 W, 0.8 A (typical)

• Dimensions: ~3¼ in (L) × 2½ in (W) × 3¾ in (H)

• Connection: ¼-inch male spade terminals

• Includes housing and impeller — sold as a complete pump module

• Replaces older part numbers like 154736201 and 5304492415
