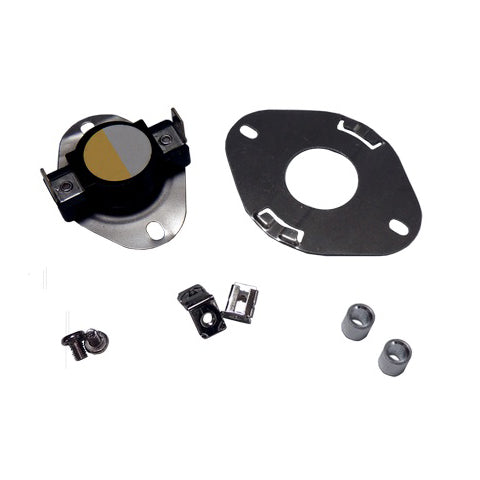

Thermostat Limit Control

The SHL Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.

• Available with automatic and manual reset SPST or automatic reset SPDT switch configurations.
• CSA approved
• Limit - open on rise
• UL® recognized
• Welded construction for the integrity of current-carrying components.



  Cut out temp (°F):	170°F
  Cut in temp ( °F):	130 °F
  Differential °:	40 °F
  FLA @ 120VAC:	10A
  FLA @ 240VAC:	5A
  LRA @ 120VAC:	60A
  LRA @ 240VAC:	30A
  Pilot Duty @ 120VAC/ 240VAC:	125 VA
  RLA @ 120VAC / 240VAC:	25A
  Agency:	UL®, CSA®
