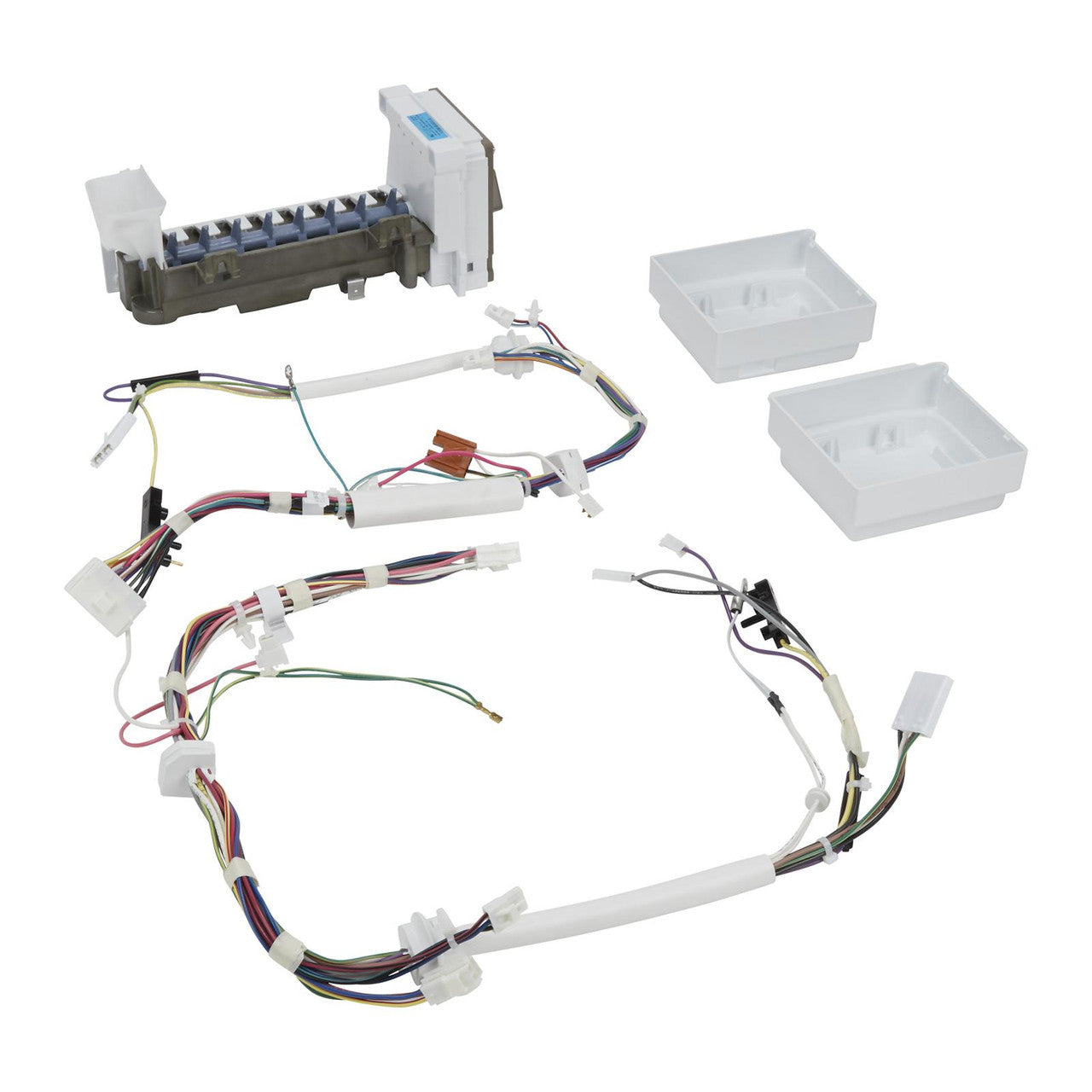

Refrigerator Ice Maker Assembly

This ice maker assembly is used in side-by-side and French door refrigerators by Whirlpool and affiliated brands. It automates ice production by filling, freezing, and ejecting ice cubes without user intervention.

Key Features

• Performs full ice cycling: water fill, freeze, and harvest to drop cubes into the ice bin.

• Includes two wiring harnesses, shut-off arm, and fill cup to integrate with original refrigerator wiring.

• Made of molded plastic housing and internal motor/gear components engineered for cold, moisture-rich environments.

• Designed to match OEM mounting dimensions, harness connectors, and electrical operation (~115 VAC).

• Fits many Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, and related refrigerator models; replaces prior part numbers such as AP6037857, W10377151, WPW10377147, and PS11769140.

• Always confirm compatibility by matching this ice maker to your refrigerator’s model number before ordering.
