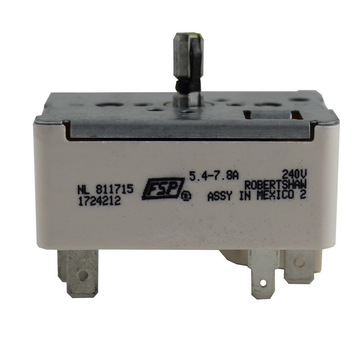

WP3148952 Replacement Part

This range switch manages the power delivered to a cooktop heating element, enabling users to select varying heat levels. It helps the burner cycle on and off according to the setting to maintain the desired temperature.

WP3148952 Key Features

Controls current flow to the 6″ surface element, enabling heat output adjustment across multiple power settings.

Rated for 5.2–6.6 A operation at 240 V, matching factory performance for common burner loads.

Installs into the range’s internal control housing, with multiple terminals matching OEM layouts.

Built with durable internal contacts and insulating materials to endure frequent switching and heat exposure.

Compatible with many Whirlpool, Kenmore, Maytag, and affiliated electric ranges for 6″ burner control.

Always confirm compatibility by matching this switch to your appliance’s model number before ordering.
