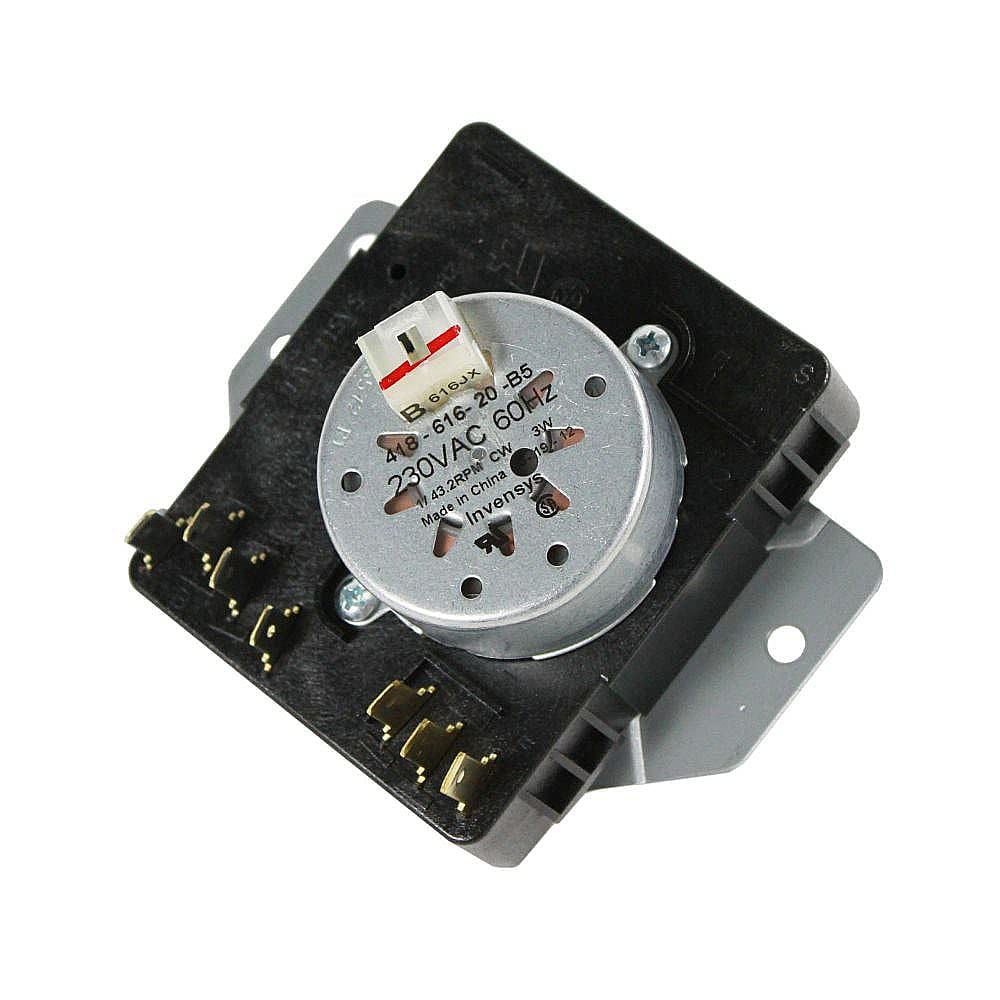

Dryer Timer

The WPW10185976 Timer orchestrates the sequence and timing of drying cycles in compatible electric dryers. It advances through phases such as heating, tumbling, and cool-down by directing power to the appropriate components in response to the user’s selected settings.

Key Features:

• Mechanical cam-driven timer for cycling through multiple dryer functions (heat, motor, cool)

• D-shaped selector shaft for secure knob coupling

• Terminals: 7 × ¼-inch male (labeled A, B, C, H, X, T, F), 2 × 1/8-inch male (motor leads), plus 1 × ¼-inch on mounting bracket

• Designed to handle standard dryer line voltage and current loads

• Durable construction built for frequent switching cycles

• Compatible with specific Whirlpool, Maytag, Kenmore, and related dryer models that accept this timer design
