Dryer Timer

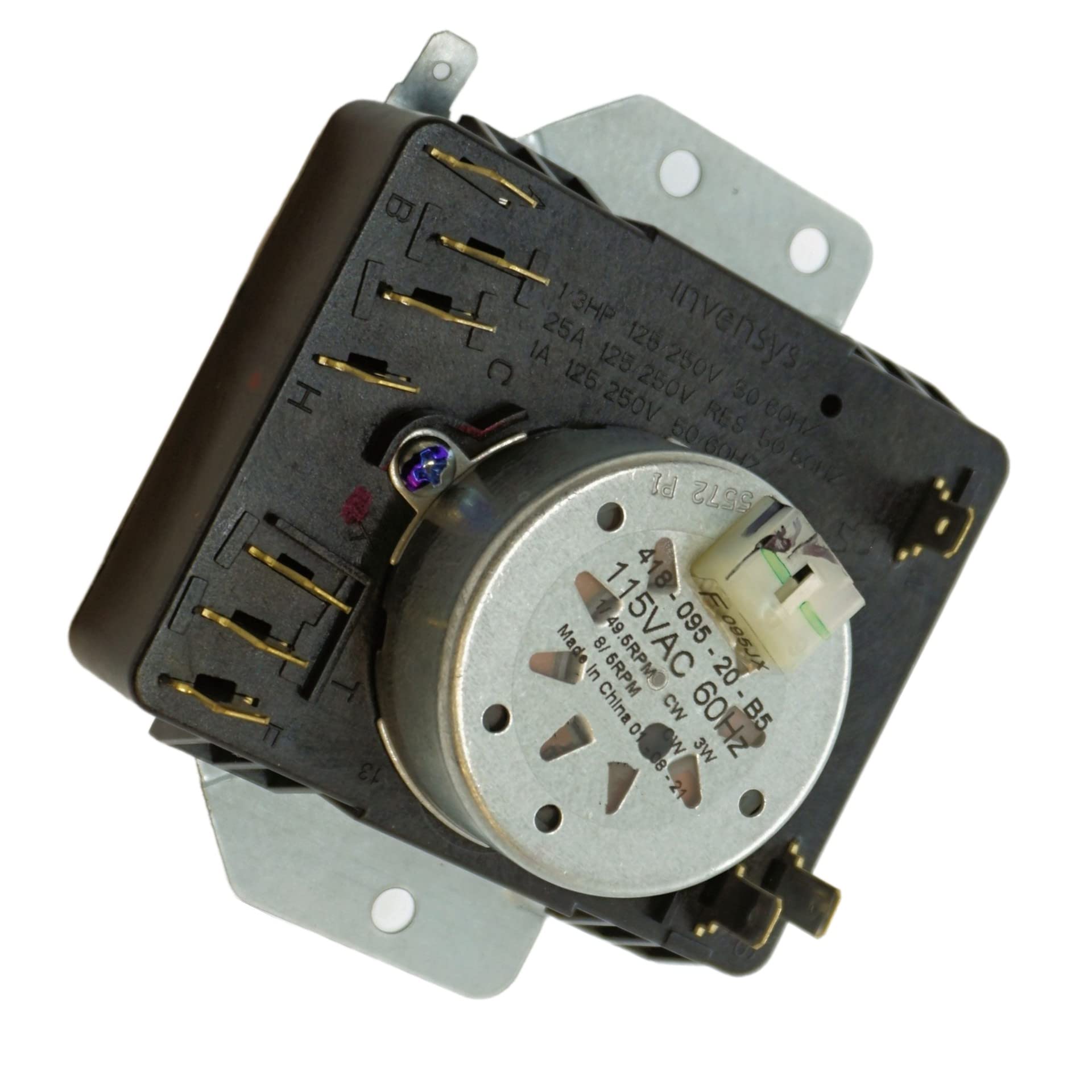

The WPW10185992 Timer governs the sequence and duration of drying cycles in compatible electric dryers. It advances through the programmed steps—such as heat, tumble, and cool-down—by routing power to the motor, heating element, and other internal circuits according to selected settings.

Key Features:

• Mechanical cam-based timer for reliable progression through dryer cycles

• D-shaped selector shaft to accept standard timer knobs

• Terminal layout: ten ¼-inch male terminals (labeled A, B, C, H, X, T, F, W, S, T2) plus one ground/faceplate terminal, plus two terminals for the internal motor (115 V)

• Internal motor rated for 115 VAC to drive cam advance

• Constructed for frequent electrical cycling and switching loads

• Compatible with select Whirlpool, Maytag, Kenmore, Crosley, and related dryer models that list W10185992 or WPW10185992 as replacement timer
